Takahashi Epsilon 160ED astrograph...

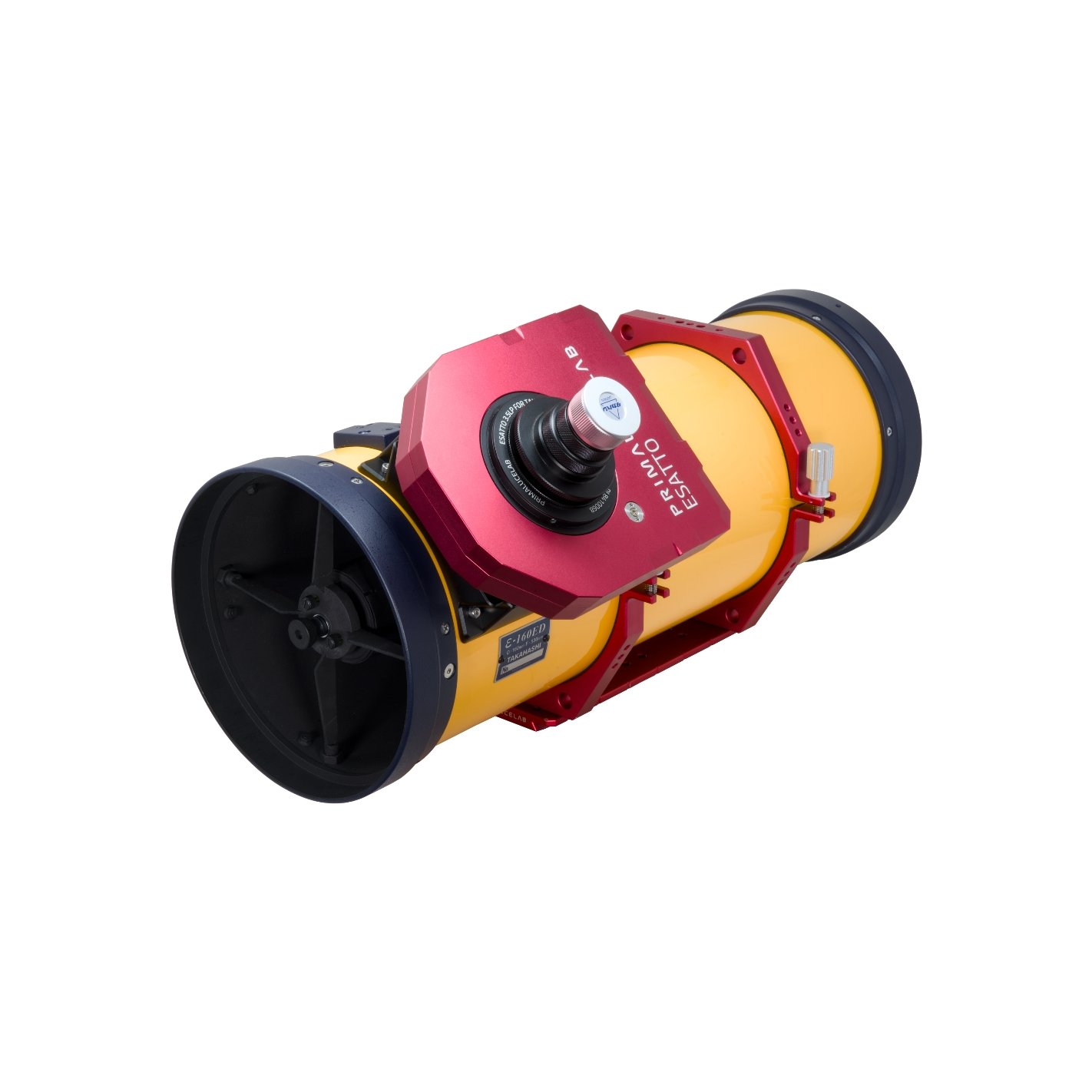

Takahashi Epsilon 160ED astrograph with ESATTO 3.5" LP

EPSILON160EDEST35LP
Takahashi Epsilon 160ED astrograph with ESATTO 3.5” LP focuser combines an iconic 160mm diameter ultra-fast f/3.3 optical design with the precision of the ESATTO 3.5” LP robotic focuser and PLUS system, making it an ideal solution for demanding deep-sky astrophotography with large sensors.

FREE SHIPPING

in most EU countries for order at least €299

Composed of

1x
ESATTO 3,5" LP low profile robotic focuser|ESATTO 3,5" LP|Primalucelab en
ESATTO 3,5" LP low profile robotic focuser
1x
Takahashi Epsilon 160ED astrograph



Takahashi Epsilon 160ED astrograph with ESATTO 3.5" LP: main features

The Takahashi Epsilon 160ED is a high-performance astrograph featuring a 160 mm diameter hyperbolic primary mirror and an ultra-fast f/3.3 focal ratio, combined with a dedicated ED field corrector. With a focal length of 530 mm and a corrected image circle of 44 mm, it delivers an extremely wide, flat field with very small stars, making it ideal for modern deep-sky astrophotography, even with large Full Frame sensors. Thanks to its advanced optical design, the Epsilon 160ED excels in capturing faint objects with high efficiency and outstanding image quality across the entire field.

  • Takahashi Epsilon 160ED with ESATTO 3.5" LP telescope is a D:160mm F:530mm f/3.3 astrograph
  • ESATTO is the most advanced and affordable robotic focuser
  • PLUS rings offer a better stability, avoid flexures and let you connect dovetail bars, guide rings, clamps and the EAGLE



Takahashi Epsilon 160ED astrograph with ESATTO 3.5" LP





ESATTO: the most advanced and affordable robotic focuser!

This special version of the Takahashi Epsilon 160ED replaces the standard focuser with ESATTO 3.5" LP Low Profile, the new generation robotic focuser that you control by any Windows computer by connecting it to a USB port, or via WiFi by using ESATTO app on your smartphone or tablet with the Virtual HandPad! The dedicated adapter allows you to install the Takahashi Epsilon 160ED corrector directly inside the ESATTO 3.5” LP focuser, maintaining the correct spacing and it is designed to use the same Takahashi photographic adapters after the focuser, so you can keep the correct backfocus exactly as with the original focuser. ESATTO 3.5" LP has 10mm of focuser tube travel, a 10kg payload capacity and an incredible resolution of 0,01 micron per step (and this is why we call it ESATTO)!









Takahashi Epsilon 160ED astrograph with ESATTO 3.5" LP: perfect for deep-sky astrophotography

Thanks to the integration of PrimaLuceLab devices with the ultra-fast optical design of the Takahashi Epsilon 160ED, this astrograph becomes an extremely powerful and versatile solution for modern deep-sky astrophotography. The ESATTO 3.5” LP robotic focuser provides the extreme focusing precision required at f/3.3, while the PLUS system allows you to build a clean, rigid and fully integrated imaging setup. For example, you can add the GIOTTO smart flat field generator and use it as a motorized telescope cap in combination with the ALTO cover motor, all mounted on a PLUS Losmandy-style dovetail plate installed above the PLUS support rings. All these devices, together with your camera and mount, can be remotely powered and controlled by the EAGLE computer, which can be directly connected to the PLUS rings, creating a compact, cable-managed and fully automated astrophotography system.





Takahashi Epsilon 160ED astrograph with ESATTO 3.5" LP







Takahashi Epsilon 160ED astrograph with ESATTO 3.5" LP:

- Takahashi Epsilon 160ED astrograph D:160mm F:530mm f/3.3
- ESATTO 3.5" LP robotic focuser
- Adapter ESATTO 3.5" LP for Takahashi Epsilon 160ED
- 205mm PLUS Support rings
