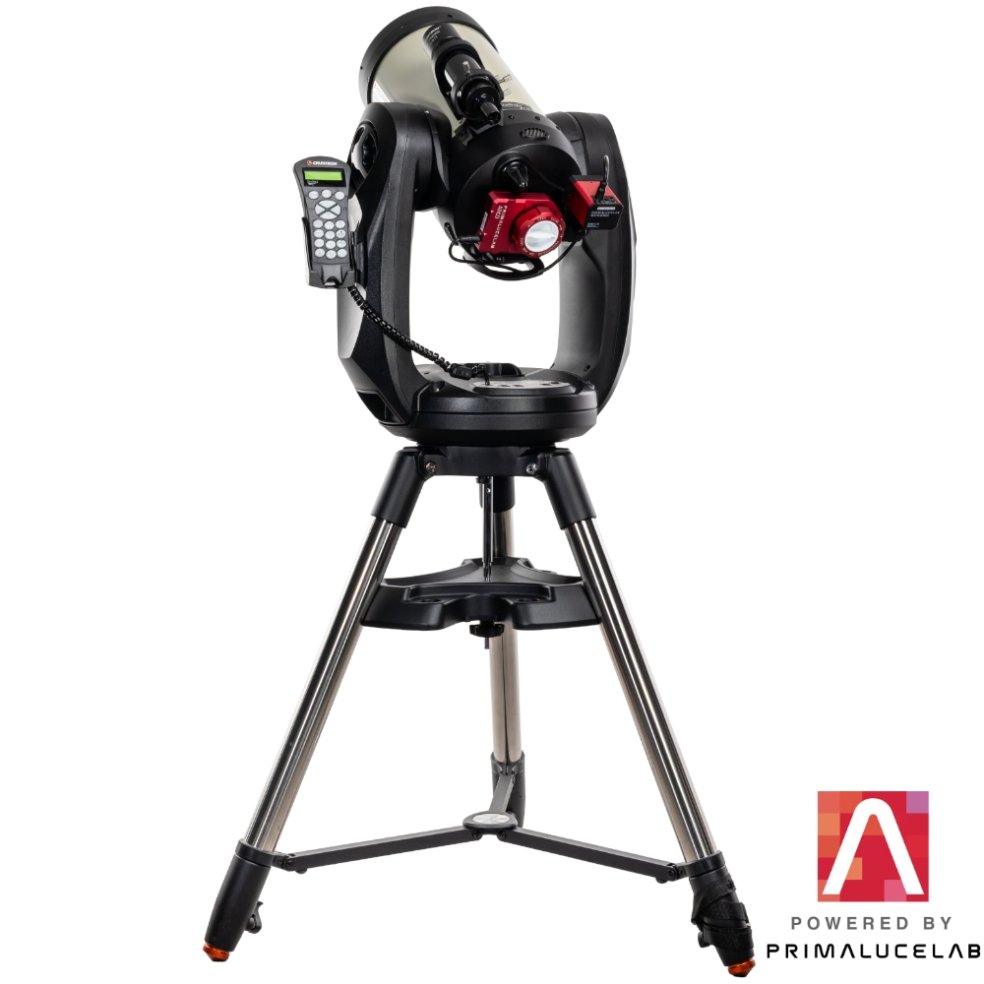

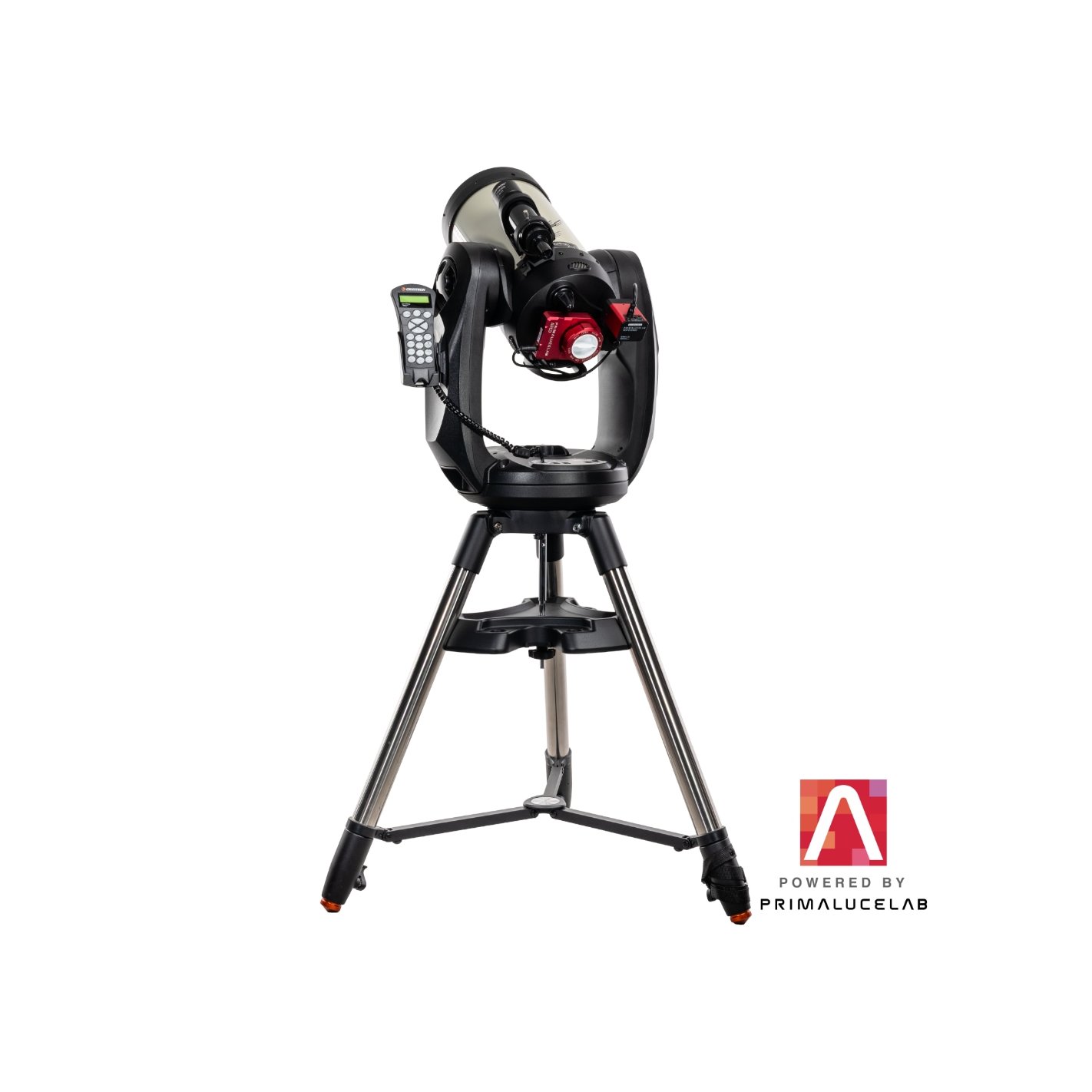

The Celestron CPC Deluxe HD 8" powered by PrimaLuceLab is the most compact and portable model in the CPC Deluxe HD powered by PrimaLuceLab family: at 203mm aperture, it delivers high performance for both visual observing and astrophotography, and it is light enough for one person to set up alone and easy to transport to different observing locations. Built around the Celestron CPC Deluxe HD 8" aplanatic Schmidt-Cassegrain telescope with EdgeHD optics on a computerized alt-azimuth fork mount, it combines serious optical performance with the simplicity of a no-polar-alignment setup. If you are looking for a telescope that does everything (visual observing, planetary imaging, and deep-sky astrophotography) in a package that is still compact, the CPC Deluxe HD 8" powered by PrimaLuceLab is our recommended choice. PrimaLuceLab adds motorized focusing, the ARCO field de-rotator for long-exposure deep-sky imaging, and PLAY software to bring everything together into a single, unified control interface. Choose your Base Kit, optionally add the EAGLE Expansion Kit, and start exploring the Universe.
The CPC Deluxe HD 8" powered by PrimaLuceLab is designed to give you full control over a real telescope system. This means it requires initial assembly, software configuration, and your active involvement in learning how to use it. It does not include cameras, and some accessories need to be chosen based on your specific goals. Everything is documented in detail: before purchasing, we recommend reading the dedicated installation and user manual (click here to read and download) so you know exactly what to expect, what is included, and what you will need to add.
Celestron CPC Deluxe HD 8" powered by PrimaLuceLab - main features:
- Celestron CPC Deluxe HD 8" aplanatic Schmidt-Cassegrain with EdgeHD optics D: 203mm F: 2030mm f/10
- Most compact and lightweight model in the family
- Computerized alt-azimuth fork mount, no polar alignment required
- Motorized focusing with SESTO SENSO 3 SC or ESATTO 2" LP (depending on Base Kit selection)
- ARCO 2" field de-rotator for long-exposure deep-sky imaging on an alt-azimuth mount
- OnAxisLock2 precision visual back with concentric ring-clamp system
- PLAY software: unified control of mount, focuser, rotator, and camera
- Auto Alignment with plate solving for precise automatic alignment
- AutoStacking for real-time image preview during capture sequences
- Connect to ASCOM cameras (tested with QHYCCD, ZWO, Player One, Atik and QSI cameras with ASCOM driver updated for ASCOM 7 platform)
- Canon and Nikon DSLR/mirrorless cameras supported directly by PLAY
- Optional EAGLE Expansion Kit: onboard Windows 11 computer with power distribution system and autoguiding with CompactGuide 60mm
- Open system with standard ASCOM interfaces, upgradeable with new cameras and accessories
- Dedicated installation and user manual for the CPC Deluxe HD 8" powered by PrimaLuceLab included
- Book "Explore the Universe through astrophotography: capturing pictures with telescopes and PLAY software" by Filippo Bradaschia included
One telescope, every experience
Look at Saturn through the eyepiece and see its rings with your own eyes. Capture the cloud bands of Jupiter, the craters of the Moon in high resolution, or reveal the spiral arms of a galaxy in a deep-sky imaging session. The CPC Deluxe HD 8" powered by PrimaLuceLab does it all with a single instrument. The Celestron EdgeHD 8" optical tube delivers 203mm of aperture at f/10 with an aplanatic optical design that corrects coma and field curvature across a flat 42mm image circle. The computerized alt-azimuth fork mount eliminates the complexity of polar alignment entirely: level the tripod, align on one or more stars, and you are ready. Use it with 1.25" or 2" diagonals and eyepieces for visual observing, add a planetary camera for high-resolution lunar and planetary imaging, or install the optional 0.7x focal reducer and capture wide-field deep-sky objects at f/7. One telescope, from your first look at the Moon to your first image of the Orion Nebula.
Visual observing: always ready
The CPC Deluxe HD 8" powered by PrimaLuceLab is a complete astrophotography system, but it never stops being a visual telescope. All PrimaLuceLab devices (the SESTO SENSO or ESATTO motorized focusing solutions, the ARCO rotator, the OnAxisLock2 visual back, and the EAGLE computer if installed) remain on the telescope at all times and do not interfere with visual observing in any way. When you want to observe visually, simply connect a 1.25" or 2" diagonal and your eyepiece to the OnAxisLock2 visual back, and you are ready. The only accessory you need to remove is the optional 0.7x focal reducer, if you had it installed for deep-sky imaging. Everything else stays in place. The computerized alt-azimuth fork mount does the rest: command it where to point, and it will find Saturn, Jupiter, the Moon, or any of the 40,000+ objects in its database and keep them centered in the eyepiece automatically. No polar alignment, no complex setup. Just look.
Ready to be used from the first night
Every component in the CPC Deluxe HD 8" powered by PrimaLuceLab has been pre-selected, pre-tested, and documented to work together. The dedicated installation and user manual created specifically for the CPC Deluxe HD 8" powered by PrimaLuceLab guides you step by step through the entire process: assembling the telescope, installing the PrimaLuceLab devices on the Celestron CPC Deluxe HD, connecting accessories for visual observing and astrophotography, installing all the required software and drivers on your Windows computer or on the EAGLE onboard computer, configuring PLAY for your specific setup, and completing your first imaging session under the sky. You also receive the individual manuals for each PrimaLuceLab component, plus the book "Explore the Universe through astrophotography: capturing pictures with telescopes and PLAY software" for a deeper understanding of astrophotography techniques and image processing.
Motorized focusing: precision and remote control
Focusing is one of the most critical operations in astrophotography: the CPC Deluxe HD 8" powered by PrimaLuceLab solves this with two motorized focusing options, one for each Base Kit. The SESTO SENSO 3 SC attaches to the existing internal focuser of the telescope and replaces manual focusing with a precision motor controlled through PLAY software. It allows you to save focus positions for different accessories and switch between visual and photographic configurations instantly. If you want to lock the telescope primary mirror, this way removing mirror shift, you can select the Base Kit with ESATTO 2" LP focuser: it is a true external focuser that replaces the internal focusing mechanism entirely, and it also removes internal focuser backlash, making ESATTO the ideal choice for users who prioritize astrophotography.
OnAxisLock2: keep every accessory perfectly aligned to the optical axis
Every accessory you connect to the telescope, whether an eyepiece, a diagonal, or a camera, must be held perfectly centered on the optical axis. Even a small amount of tilt between the camera sensor and the optical path causes field curvature and elongated stars toward the edges of your images. Traditional visual backs use thumbscrew to lock accessories in place, which allow the accessory to tilt under its own weight. The OnAxisLock2 2" visual back included with every Base Kit replaces this mechanism with a concentric ring-clamp system: rotating the outer ring applies uniform pressure around the full circumference of any 2" accessory, keeping it perfectly centered and preventing tilt or lateral flex. This matters for astrophotography, where even minor misalignment degrades image quality, and it is equally valuable for visual observing with heavy eyepieces that would otherwise shift in a conventional holder. The kit also includes the OnAxisLock2 31.8mm (1.25") eyepiece holder for using 1.25" accessories.
High-resolution planetary and lunar imaging
The CPC Deluxe HD 8" is equally at home capturing the surface details of the Moon, the cloud bands of Jupiter, and the rings of Saturn. At f/10, the EdgeHD 8" optical tube delivers the long focal length that high-resolution planetary imaging requires. Pair it with a fast planetary camera, and you can capture thousands of short-exposure frames in seconds, then select only the sharpest frames for stacking. Add a 2x or 3x Barlow lens to push the effective focal length further and resolve finer details on planetary discs or lunar surface. The Moon and planets are an ideal target for first astrophotography sessions: they're bright, require short exposure times, and the level of detail you can capture with 203mm of aperture will surprise you from the very first session.
Long-exposure deep-sky imaging on an alt-azimuth mount
An alt-azimuth telescope tracking a celestial object keeps it centered in the field of view, but it cannot prevent the field itself from slowly rotating as the Earth rotates. This effect, called field rotation, causes stars to trail in circular arcs during long exposures, making it impossible to do deep-sky imaging. ARCO solves this problem. Mounted between the telescope and your camera, ARCO continuously rotates the camera with a fantastic precision and at precisely the correct rate, automatically calculated by PLAY software based on the telescope's current pointing position. The result is that, when you add the optional 0.7x focal reducer, the CPC Deluxe HD 8" can capture long-exposure deep-sky images without an equatorial mount or equatorial wedge, retaining all the simplicity advantages of the alt-azimuth design. Beyond field de-rotation, ARCO also lets you rotate the camera to any angle for precise framing of your targets.
PLAY: the easy to use astrophotography software
PLAY is the PrimaLuceLab software that brings your entire telescope system together in a single interface. From PLAY you control the telescope mount, the motorized focuser, the ARCO rotator, and your camera, all from one application. The built-in planetarium shows the sky in real time and lets you select targets from multiple catalogs or use the Suggested Targets feature to find the best objects for your current date, time, and location. Auto Alignment uses plate solving to precisely align your telescope to the sky without manual star identification. AutoStacking automatically aligns and stacks each captured frame in real time, so you can watch your target emerge from the noise as the session progresses. PLAY is designed to be the central hub of your astrophotography workflow and works alongside specialized tools: PHD2 for autoguiding during long-exposure sessions, and SharpCap for high-frame-rate planetary video capture. PLAY runs on any Windows 10/11 computer.
Your camera, your choice
No camera is included in any CPC Deluxe HD 8" powered by PrimaLuceLab configuration. This is a deliberate choice. The system is designed to work with the camera that best fits your imaging goals, your sensor preferences, and your budget. Any camera compatible with PLAY can be used with the CPC Deluxe HD telescope powered by PrimaLuceLab. PLAY also supports Canon and Nikon DSLR and mirrorless cameras directly, without requiring an ASCOM driver (list of tested DSLR/mirrorless cameras is available here). For planetary and lunar imaging, non-cooled astronomy cameras are the natural choice thanks to their compact size and high frame rates. For deep-sky imaging, cooled cameras can be used, but keep in mind that the alt-azimuth configuration of CPC Deluxe HD limits individual exposures to a few minutes even with autoguiding, unlike equatorial mount systems that support much longer single exposures. This makes compact non-cooled cameras with medium-sized sensors (such as 11x11mm) a practical and effective choice also for deep-sky work. Cameras with USB ports on the side of the body rather than at the rear further minimize the overall length of the optical train, maximizing the available clearance when pointing near the zenith. Smaller sensors can be set closer to the focal reducer (at a shorter backfocus distance than the optimal one) without creating field curvature, further reducing clearance issues at high elevations.
EAGLE Expansion Kit: the next level
The optional EAGLE Expansion Kit transforms the CPC Deluxe HD 8" powered by PrimaLuceLab into a fully integrated, remotely operated astrophotography station. The EAGLE6 S is a Windows 11 computer that mounts directly on the telescope, replacing your laptop, separate power supplies, and USB hubs with a single unit. All devices connect to EAGLE for centralized power and USB management, and you control everything wirelessly from your smartphone, tablet, or computer through a Remote Desktop connection. The kit adds the CompactGuide 60mm guide telescope for autoguiding. Because the alt-azimuth fork mount configuration does not allow an off-axis guider (the camera would collide with the fork arms during ARCO field de-rotation), a parallel guide scope is the correct solution. Combined with a guide camera (not included, sold separately) and PHD2 software, this system continuously monitors a reference star and sends corrections to the mount, enabling deep-sky exposures of up to 3 to 4 minutes per frame. This is shorter than what equatorial mount systems achieve, but by stacking 20 to 50 sub-frames the results are impressive. This is also why a compact non-cooled camera with a medium sensor (around 11x11mm) is a practical choice for deep-sky imaging with this telescope: it provides enough field of view to frame interesting targets while keeping the optical train short and the zenith clearance safe. EAGLE also includes environmental sensors for sky quality monitoring, an inclinometer for measuring maximum safe elevation angles, and slides along the optical tube to serve as a counterweight for precise balance adjustment.
Engineered mounting and cable management
The EAGLE Expansion Kit includes two 350mm Losmandy-style PLUS dovetail plates with precision curved mounting blocks, specifically shaped to match the cylindrical profile of the CPC Deluxe HD 8" optical tube. One plate is installed on top of the tube and one on the bottom, providing stable and secure attachment points for the CompactGuide 60mm guide telescope on one side and the EAGLE computer on the other. EAGLE is also able to slide along the bottom dovetail bar to fine-tune the weight balance based on the camera and dew shield you plan to install. The kit also includes a complete set of optimized-length USB and power cables designed specifically for the CPC Deluxe HD 8", together with cable sleeves and cable ties for clean, organized cable routing to prevent them from hanging freely or interfering with the telescope's movement during tracking and slewing. This attention to cable management is not cosmetic: cables that catch on the mount or pull on connectors during operation can disconnect devices, damage ports, or introduce tracking errors.
Learn from the book included with your telescope
Every CPC Deluxe HD 8" powered by PrimaLuceLab comes with the book "Explore the Universe through astrophotography: capturing pictures with telescopes and PLAY software" by Filippo Bradaschia. This is not a quick-start leaflet: it is a comprehensive guide to astrophotography that covers telescope optics, mount theory, camera settings and sensor technology, image acquisition techniques, image processing with dedicated software, and a complete seasonal guide to the best targets visible from your location throughout the year. While the dedicated installation manual tells you how to set up and configure your specific system, this book gives you the deeper understanding of why things work the way they do, and how to get the best results from your telescope night after night.
An open system that grows with you
The CPC Deluxe HD 8" powered by PrimaLuceLab is built on open, standard interfaces. All devices communicate through the ASCOM platform, the industry standard for astronomy software and hardware interoperability. This means that as your experience grows, you can add new cameras, new accessories, and new software tools without ever having to replace the core system. You choose the camera that best fits your imaging goals today, and replace it with a better one tomorrow. You start with visual observing, move to high-resolution planetary and lunar imaging with a fast camera and ARCO to keep your target perfectly oriented in the frame, then progress to deep-sky imaging with ARCO field de-rotation and autoguiding: all with the same telescope, the same mount, the same core system. You can even control everything remotely with an external Windows computer or with the optional EAGLE Expansion Kit, turning the telescope into a fully automated astrophotography station operated from your sofa. You choose the camera. You choose the accessories. You decide how far to take it. Please note that PLAY is always required in any configuration, even when using third-party software for image acquisition, because the ARCO field de-rotation function is managed exclusively by PLAY. The CPC Deluxe HD 8" powered by PrimaLuceLab is designed to be your first serious telescope and the one you keep using for years.
Q&A — Celestron CPC Deluxe HD 8" powered by PrimaLuceLab
What is the Celestron CPC Deluxe HD powered by PrimaLuceLab?
It is a complete astrophotography system built around the Celestron CPC Deluxe HD telescope. PrimaLuceLab adds a motorized focuser, a field de-rotator, and the PLAY software to transform the CPC Deluxe HD into a telescope that is ready for visual observation, planetary imaging, and automated deep-sky astrophotography, without requiring years of technical experience to set up.
Is this a smart telescope?
No. The CPC Deluxe HD powered by PrimaLuceLab is a different kind of system. Smart telescopes are closed products with fixed optics, limited planetary imaging performance and no possibility to use eyepieces. This system is built around a real aplanatic Schmidt-Cassegrain telescope with a large aperture, and it is fully open. It requires active involvement from the user and an initial configuration, but then it offers expansion possibilities, control, and application possibilities that no smart telescope can match.
Is polar alignment required?
No. The CPC Deluxe HD is an alt-azimuth telescope. You level the tripod, perform a quick star alignment, and you are ready. No equatorial wedge is required.
How does the system solve the field rotation problem?
Alt-azimuth mounts cannot prevent the field from slowly rotating during long exposures. The ARCO field de-rotator, connected to PLAY software, continuously rotates the camera at precisely the correct rate. This makes long-exposure deep-sky imaging possible without an equatorial mount.
What is included? Do I need to buy the telescope separately?
The Celestron CPC Deluxe HD telescope is included in the complete system. However, if you already own a CPC Deluxe HD telescope, you can also purchase only the SESTO SENSO + ARCO Base Kit or the ESATTO + ARCO Base Kit, with the optional EAGLE Expansion Kit, and install them on your existing telescope. The book "Explore the Universe through Astrophotography" by Filippo Bradaschia is included in both Base Kits.
Is a camera included?
No. The system is compatible with any camera supported by PLAY software and standard ASCOM drivers on Windows. This gives you the freedom to choose the camera that best suits your imaging goals and budget. If your camera is not directly supported by PLAY, you can still use the full system: PLAY manages the mount, the focuser, and the ARCO field de-rotator, while you control the camera from a separate application, such as the software provided by your camera manufacturer.
Is there anything to consider when choosing a camera?
The main thing to keep in mind is the clearance between the camera and the mount base when the telescope points toward the zenith. Compact, low-profile cameras work best in this configuration, and cameras with side-mounted USB ports are particularly well suited because they minimize the overall length of the optical train. Cooled cameras also work well, but their larger physical size reduces the available zenith clearance. The Integration and First Setup Manual provides detailed guidance on how to verify the clearance for your specific camera before starting your first session.
What is the difference between the two Base Kits?
The SESTO SENSO + ARCO Base Kit uses the telescope's internal focus mechanism, motorized by the SESTO SENSO 3 SC. It is the more affordable option and works well for both visual and photographic use. The ESATTO + ARCO Base Kit replaces the internal focuser entirely with the ESATTO 2" LP external focuser, locking the primary mirror and eliminating mirror shift and backlash. It is the recommended choice for users who primarily use the telescope for imaging and want the best possible focusing performance.
What is mirror shift, and does it affect this telescope?
Mirror shift is a lateral displacement of the image that occurs in Schmidt-Cassegrain telescopes when the internal focus mechanism reverses direction. With the SESTO SENSO + ARCO Base Kit, mirror shift is present because the internal focuser is still in use. With the ESATTO + ARCO Base Kit, the primary mirror is locked and mirror shift is completely eliminated.
What is the EAGLE Expansion Kit?
The EAGLE Expansion Kit adds the EAGLE6 S, a Windows 11 computer engineered for use on a telescope. It mounts directly on the optical tube and centralizes power and USB connectivity for all devices. It also includes the CompactGuide 60mm guide telescope, Losmandy dovetail plates, and all cables. The EAGLE Expansion Kit requires one of the two Base Kits and cannot be used alone.
Can I use 2" eyepieces and diagonals for visual observation?
Yes. Both 1.25" and 2" star diagonals and eyepieces can be used with the CPC Deluxe HD powered by PrimaLuceLab. We recommend verifying the available clearance between your accessories and the mount base when the telescope points toward the zenith, following the guidelines provided in the Integration and First Setup Manual.
Can I use a focal reducer for deep-sky imaging?
For deep-sky astrophotography with the CPC Deluxe HD powered by PrimaLuceLab, the Celestron 0.7x focal reducer for EdgeHD is strongly recommended. The focal reducer is not included in any kit and must be purchased separately. Please note that adding the focal reducer increases the overall length of the optical train, so we recommend verifying the clearance between your camera and the mount base at zenith, following the guidelines provided in the Integration and First Setup Manual.
What computer do I need?
If you order the kit without the EAGLE Expansion Kit, you will need an external Windows 10 or Windows 11 PC where you will install PLAY. If your kit includes the EAGLE Expansion Kit, the EAGLE6 S computer with Windows is already provided, and you can use any external device, such as a Windows or macOS laptop or a tablet, to remotely control your EAGLE.
What software is required?
PLAY (free download from primalucelab.com), Celestron CPWI, the ASCOM Platform, and ASTAP for the Auto Alignment feature. If you have the EAGLE Expansion Kit with a guide camera, PHD2 Guiding is also required. All software is free.
Is autoguiding necessary?
Autoguiding is not required for visual observation or planetary imaging, but it is strongly recommended for deep-sky astrophotography. Without autoguiding, tracking errors limit practical exposure lengths. With autoguiding, the system can support individual exposures of several minutes per frame.
Where can I find the installation manual?
The full Integration and First Setup Manual is available in the USER MANUALS section of primalucelab.com, for all three CPC Deluxe HD models (8", 9.25", 11").
