C120 pier for concrete base

FAST SHIPPING with express courier

C120 pier for concrete base

PrimaLuceLab
C120-C-B

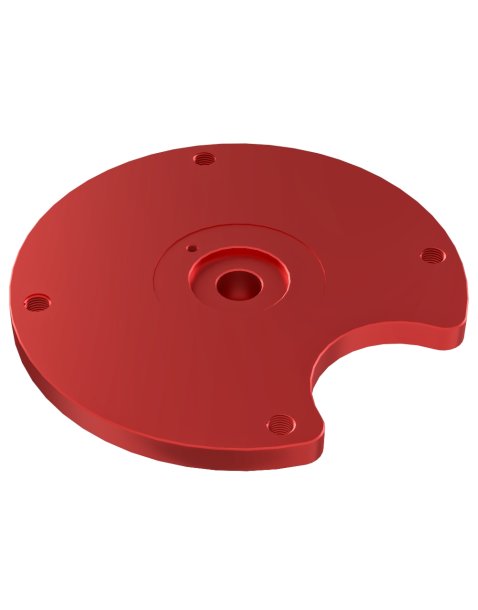

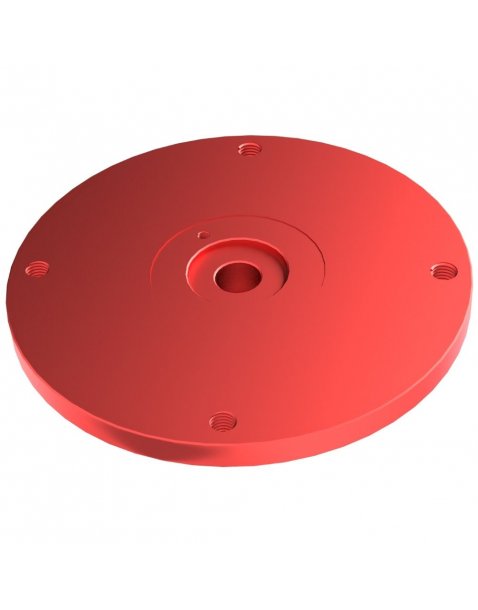

C120 pier is the perfect solution to install even a large telescope in an astronomical observatory. The C120 pier has a high load capacity (150 kg) and, compared to a standard tripod, it provides high stability and needs for less space. A pier also prevent the telescope to touch the tripod legs during movements! This pier is available also with different optional adapters for EQ6, EQ6-R, AZ-EQ6, CGEM, EQ8, GM1000, GM2000, GM3000 or Paramount MX mounts.

Availability: In Stock

Delivery in 24-48 hours from shipment with express courier

€815.57

If you pay by bank transfer 791,11 €

Composed of

1x
C120 pier for concrete base
€815.57

Optional accessories

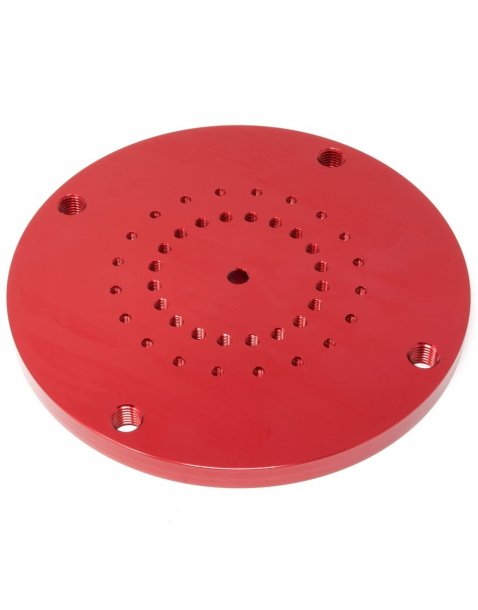

EQ8 adapter for C120 pier
EQ8 adapter for C120 pier
€307.38

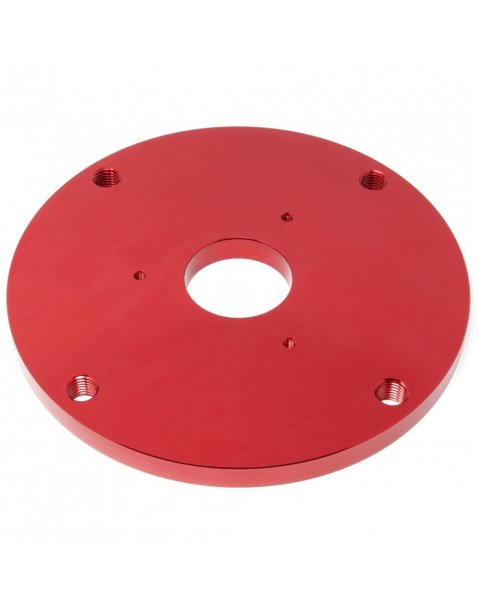

GM1000 adapter for C120 pier
GM1000 adapter for C120 pier
€266.39 Order
GM2000 adapter for C120 pier
GM2000 adapter for C120 pier
€282.79 Order
GM3000 adapter for C120 pier
GM3000 adapter for C120 pier
€299.18
Paramount MX adapter for C120 pier
Paramount MX adapter for C120 pier
€307.38

We do not ship PrimaLuceLab products to UK or USA, you can order to one of our UK or USA dealers.

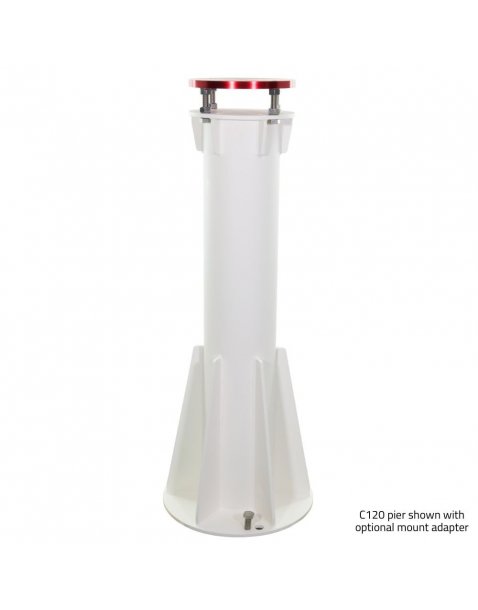

The C120 pier is 120cm high (height from the ground including the optional adapter) and is made up of steel with 4mm thickness and 220mm diameter tube in order to ensure high load capacity. The pier is powder coated. At the base of the pier there are 3 pairs of holes at 120°: each pair consists of a through hole that is used to fix the pier to the threaded bars (not included) that have to be in the concrete base and an M20 threaded hole where you screw in the M20 screws (supplied in the package) to allow leveling of the C120 pier. The C120 pier for concrete base weighs 60 kg without the optional adapter.



C120 pier for concrete base

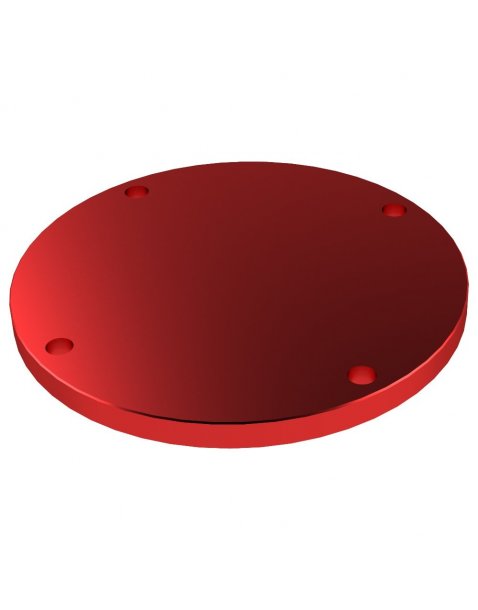

You can order the C120 pier also without the adapter: in this case the user will have to make an adapter for his mount, in the image below you will find the dimensions of the adapter with the connections for the C120 pier, then you will have to add the connection for your mount.



C120 pier for concrete base

New product
2021-05-18
