Avalon Instruments M-Zero LHQ Wi-Fi mount with StarGO

Avalon Instruments
AV-1MZR005-B

Zero degrees, zero limits! Avalon Instruments M-Zero LHQ Wi-Fi mount with StarGO is light, strong and smart as well as the M-zero standard versions but, being suitable for very low latitude areas till 0°, it is the perfect instrument for the traveling astronomy.

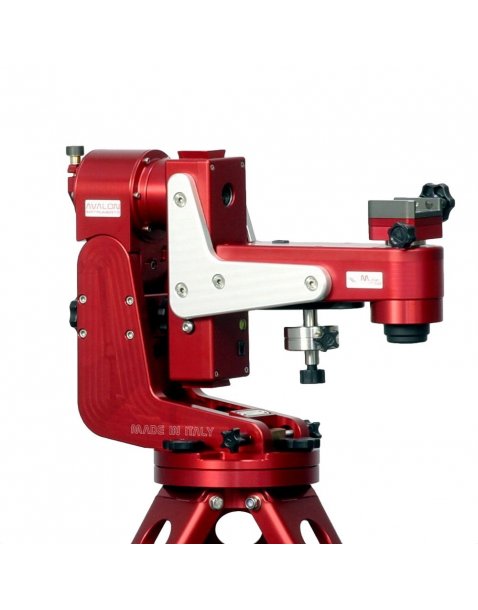

In the picture shown with optional T-POD tripod.

Availability: Not available

€4,148.00
Tax included

If you pay by bank transfer 4.046,00 €

Composed of

1x
Avalon Instruments M-Zero LHQ Wi-Fi mount with StarGO
€4,148.00

Optional accessories

Avalon Instruments Dual Dec Adapter for M-Zero mount
Avalon Instruments Dual Dec Adapter for M-Zero mount
€61.00 Out of stock
Avalon Instruments 145mm counterweight shaft for M-Zero e M-Uno
Avalon Instruments 145mm counterweight shaft for M-Zero e M-Uno
€40.00 Out of stock
Avalon Instruments stainless steel tip set for T-POD/90/110/130
Avalon Instruments stainless steel tip set for T-POD/90/110/130
€24.00 Out of stock

Optional Tripod

Avalon Instruments T-POD 110 tripod
Avalon Instruments T-POD 110 tripod
€837.00 Out of stock
Avalon Instruments T-POD 130 tripod
Avalon Instruments T-POD 130 tripod
€876.00 Out of stock




From 0° till 70° mount

Avalon Instruments introduce the M-Zero for low latitude areas till 0°. Light weight, small dimensions the M-Zero LHQ comes with four range degrees available:

1 - 0° - 15°
2 - 15° - 45°
3 - 30° - 55°
4 - 55° - 70°

The M-Zero LHQ is the perfect mount for low latitude area and traveling astronomy. NOTE: the Alt/az configuration is not available in the M-Zero LHQ mount.



6 dec arm positions on the RA axis available

As well as the M-Zero standard versions, the M-Zero LHQ allow to move the DEC arm on the RA axis in 6 different positions on depending on the user setup, to allow a fine balancing by using the less counterweight possible (in most cases, with less than 1 kg/2.2 lb counterweight).

Avalon Instruments M-Zero LHQ Wi-Fi mount with StarGO





Double Telescope Setup

Thanks to the Dual-DEC system or by assembling the optional X-guider accessory, it is possible to mount a second telescope in the opposite side of the declination axis. Considering this capability it is possible to use a great range of optics starting from a small (4-5 kg/8.8-11 lb) refractor up to a double setup with a total weight of 12-13 kg/26.4-28.6 lb, obtaining performances so good to get it over the need of a bigger mount. Thanks to StarGO GoToControl System the M-Zero can be controlled by smartphone and tablet via WiFi connection.

Avalon Instruments M-Zero LHQ Wi-Fi mount with StarGO





No maintenance requested

Practically zero maintenance, long-lasting materials and ability to easily update the StarGO firmware and software allow the M-Zero to be always ready for use, updated, competitive and extremely reliable!



Technology and Innovation

The top quality manufacturing level, the Fast-Reverse Belt Drive System with zero backlash and the StarGO GoTo control system allow excellent performance in the photographic use, with guided long exposure images (see our suggested PHD2 guide parameters table), even while using very long focal length telescopes.The polar alignment can be performed by using the polar scope mounted on the RA body that can be rotated to the upper position for a comfortable adjustment of the Polar Alignment.





Avalon Instruments M-Zero LHQ Wi-Fi mount with StarGO - scope of delivery:

- M-M-Zero LHQ Wi-Fi mount

- StarGO computer

- 1 x 0,5 Kg counterweight

- Illuminated polar finder

- 15V 4A power unit

- Transport bag

- Installation and user manual

Power requirements
15V 4A
Dovetail bar fitting
Vixen
Polar finder
Yes
Load capacity (kg)
8
Pulsantiera di controllo
Yes
Contrappesi
1 x 0.5kg
Diametro asta contrappesi
-
Lunghezza asta contrappesi
-
Motors
Doppio asse
Controllo dell'errore periodico
Yes
Peso testa della montatura
10,1 kg
Peso treppiede
-
Porta autoguida ST4
Yes
Mount type
Equatorial GOTO
Treppiede
No
Velocità massima di spostamento
-
New product
2021-05-18
